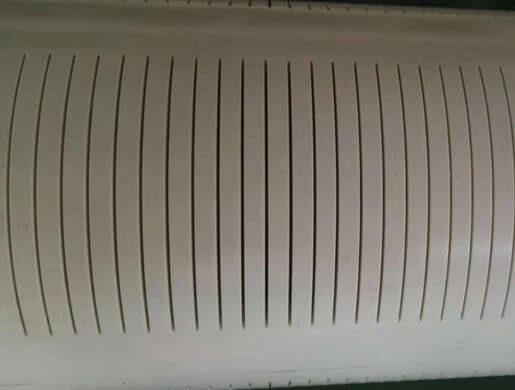

Perforated(Slotted) U PVC/PVC M Pipe

1. Dia: DN20-800mm(1/2 inch-32 inch).
2. Pressure Class: PN8 to PN25 and Non Pressure.
3. Delivery: 5-10 days depending on the total quantity.
4. Packing: 3/6/9/12m/pcs for straight, with plain ends, RRJ end or SCJ end.
5. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Details of Perforated(slotted) U PVC/PVC M pipe

Products details information Company/factory strength
Product name Perforated(slotted) U PVC/PVC M pipe Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-800mm(1/2 inch-32 inch) Delivery time 5-10 days, depending on the quantity
Pressure class PN8 to PN25 and Non Pressure Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw material U PVC/M PVC Management Effective 8S management system
Standards EN 1401, EN ISO 1452, EN ISO 15493, EN 1767, ISO4422, ASTM D1785, BS 3505 Test/inspection National standard laboratory, Pre-delivery inspection
Color Grey, Blue, Others colors is option Warranty 50 years with normal use
Packing RRJ end or SCJ end, 3/6/9/12m/pcs for straight, with plain ends No. of employees More than 300
Application Waste water Drainage, Mining, Chemical, Sewer, Leachate, Landfill... Quality QA & QC system, Ensure traceability of each process
Matching products PVC fitting, PVC solvent cement fitting, PVC rubber ring joints, PVC threaded fittings, Flanges, Glue and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of UPVC Perforated(slotted) U PVC/PVC M pipe

DEF pipeline U PVC / PVC M slotted pipe range is most commonly used to collect liquids such as rainwater in irrigation, highways and roads to avoid spills and flooding in the area. These pipes are produced to pressure, non-pressure, or general pipe specifications depending on the amount of liquid that needs to be captured.

U PVC / PVC M perforated pipes and slots produced from virgin materials can also be used as casings and wells.

Def pipeline is the ideal piping solution with the safty and reasonable price.

PVC Fittings

  • PVC Rubber Ring Joint

  • PVC Threaded Fitting

  • PVC Solvent-cement Fitting

Advantages of Perforated(slotted) U PVC/PVC M pipe

  • 1. Good water intake due to special slotting technology.
  • 2. High pressure jetting.
  • 3. Light weight, easy to carry and install.
  • 4. The inner wall of the pipeline is smooth, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is less.
  • 5. Good aging resistance and long service life.
  • 6. Excellent corrosion resistance and chemical resistance. Suitable for industrial sewage discharge and transportation.
  • 7. The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Specification of Perforated(slotted) U PVC/PVC M pipe

Nominal outside diameters (DN) and nominal wall thickness en based on an overall service (design) coefficient of C = 2.5
Nominal Outside Diameter
DN(mm)		 Pipe Series S , SDR, PN Equivalents
S 20 S 16.7 S 16 S 12.5 S 10 S 8 S 6.3 S 4
SDR 41 SDR 34.4 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 9
PN 5 PN 6 PN 6.3 PN 8 PN 10 PN 12.5 PN 16 PN 25
Wall Thickness
10 - - - - - - - 1.5
12 - - - - - - - 1.5
16 - - - - - - 1.5 1.8
20 - - - - - - 1.5 2.3
25 - - - - - 1.5 1.9 2.8
32 - - - - 1.6 1.9 2.4 3.6
40 - - 1.5 1.6 1.9 2.4 3 4.5
50 - - 1.6 2 2.4 3 3.7 5.6
63 1.6 1.9 2 2.5 3 3.8 4.7 7.1
75 1.9 2.2 2.3 2.9 3.6 4.5 5.6 8.4
90 2.2 2.7 2.8 3.5 4.3 5.4 6.7 10.1
Nominal outside diameters (DN) and nominal wall thickness en based on an overall service ( design) coefficient of C = 2.0
Nominal Outside Diameter Pipe Series S , SDR, PN Equivalents
S 20 S 16 S 12.5 S 10 S 8 S 6.3 S 5
SDR 41 SDR 33 SDR 21 SDR 21 SDR 17 SDR 13.6 SDR 11
DN PN 6.3 PN 8 PN 10 PN 12.5 PN 16 PN 20 PN 25
mm Wall Thickness
110 2.7 3.4 4.2 5.3 6.6 8.1 10
125 3.1 3.9 4.8 6 7.4 9.2 11.4
140 3.5 4.3 5.4 6.7 8.3 10.3 12.7
160 4 4.9 6.2 7.7 9.5 11.8 14.6
180 4.4 5.5 6.9 8.6 10.7 13.3 16.4
200 4.9 6.2 7.7 9.6 11.9 14.7 18.2
225 5.5 6.9 8.6 10.8 13.4 16.6 -
250 6.2 7.7 9.6 11.9 14.8 18.4 -
280 6.9 8.6 10.7 13.4 16.6 20.6 -
315 7.7 9.7 12.1 15 18.7 23.2 -
355 8.7 10.9 13.6 16.9 21.1 26.1 -
400 9.8 12.3 15.3 19.1 23.7 29.4 -
450 11 13.8 17.2 21.5 26.7 33.1 -
500 12.3 15.3 19.1 23.9 29.7 36.8 -
560 13.7 17.2 21.4 26.7 - - -
630 15.4 19.3 24.1 30 - - -
710 17.4 21.8 27.2 - - - -
800 19.6 24.5 30.6 - - - -
900 22 27.6 - - - - -
1000 24.5 30.6 - - - - -

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of PVC pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • PVC Solvent-cement Fitting

  • PVC Rubber Ring Joint

  • PVC Threaded Fitting

  • PVC Pipe and Fitting

  • UPVC Pipe for Water Supply

  • UPVC Pipe for Industry

  • UPVC Pipe for Irrigation System

  • UPVC Pipes ASTM SCH40 SCH80 and SCH120

  • UPVC Underground Drainage and Sewerage Pipe

  • UPVC Conduit for Underground Telecommunication Cable

  • CPVC Pipes ASTM SCH40 and SCH80

  • CPVC Cable Conduit

  • Modified Polyvinyl Chloride (PVC-M) Pipe

  • Perforated(Slotted) U PVC/PVC M Pipe

  • Oriented Polyvinyl Chloride(PVC-O) Pipe

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Perforated(Slotted) U PVC/PVC M pipe



The following are the specifications of Perforated(Slotted) U PVC/PVC M pipe of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
