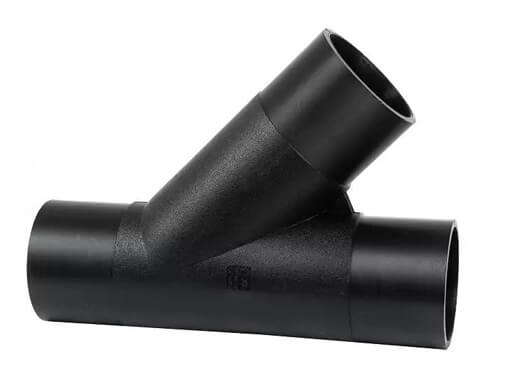

HDPE Y Tee

1. Dia: DN50-355mm (2 inch-14 inch).
2. Pressure Class: SDR17, SDR13.6, SDR11, SDR9, SDR7.4.
3. Pressure Class: PN10, PN12.5, PN16, PN20, PN25.
4. Packing: Packaged by cartons or bags.
5. Delivery: In Stock, Quick Deliery.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Def pipeline can provide the HDPE pipe fittings with various items & specifications. Price concessions, high quality, reliable connectio

Def pipeline can provide HDPE butt fusion fittings of Injection Flange Adapter (Stub End ), 90 Degree Elbow, 60 Degree Elbow, 45 Degree Elbow, 22.5 Degree Elbow, Tee, Reducing Tee, Reducing Coupler, Cross Tee, End Cap, Y Tee, etc.

Details of High Density Polyethylene (HDPE) butt fusion welding fittings

Products details information Company/factory strength
Product name High density polyethylene (HDPE) butt fusion welding fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time In stock, Quick deliery
Pressure class PN10 to PN25 Quality QA & QC system, Ensure traceability of each process
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Flange adapter (stub end ), 90 degree elbow, 45 degree elbow, Tee, Reducing tee, Reducing coupler, Cross, End cap, HDPE Y tee.. Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) butt fusion welding fittings

Butt fusion is the most commonly used fusion method for HDPE pipes, and HDPE butt fusion pipe fittings are the most commonly used fittings for HDPE piping systems.

The outer diameter of HDPE butt welded pipe fittings should be exactly the same as the HDPE pipe. Use the HDPE pipe butt welding machine to fuse the two ends at a certain temperature and time, then remove the heating plate and bond the two ends tightly together under a fixed pressure until it cools.

All PE butt fusion fittings are made of PE100 material, and the specified SDR value pipe must correspond to the same SDR value pipe fitting during welding. It is unacceptable to use a butt fusion joint with a different SDR grade than the pipe. PE pipes with the same outer diameter but different specified wall thicknesses,different SDR can butt against each other under special conditions after consulting with the pipe manufacturer .

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

HDPE Butt Fusion welding Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Cross

  • HDPE Y Tee

  • HDPE Butt Fusion Reducing Tee

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Butt Fusion 45 Degree Elbow

  • HDPE Butt Fusion 22.5 Degree Elbow

  • HDPE Butt Fusion End Cap

  • HDPE Eccentric Reducer

  • PP Coated Backing Ring/PP Fiber Backing Ring with HDPE flange adaptors

Characteristics And Advantages of High Density Polyethylene (HDPE) butt fusion welding fittings：

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Specification of HDPE Y Tee 45°

Name    Size  SDR L        mm H        mm L1       mm
Y Tee 63*45° 11 230 85 58
Y Tee 75*45° 11 280 90 68
Y Tee 90*45° 11 315 100 70
Y Tee 110*45° 11 400 130 90
Y Tee 110*45° 17 400 130 90
Y Tee 125*45° 11 420 135 95
Y Tee 160*45° 11 485 150 105
Y Tee 160*45° 17 485 150 105
Y Tee 200*45° 11 605 180 115
Y Tee 200*45° 17 605 180 115
Y Tee 225*45° 11 700 200 125
Y Tee 225*45° 17 700 200 125
Y Tee 250*45° 11 700 200 125
Y Tee 250*45° 17 700 200 125
Y Tee 280*45° 11
Y Tee 280*45° 17
Y Tee 315*45° 11
Y Tee 315*45° 17

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Electrofusion 90 Degree Elbow/span>

  • HDPE Electrofusion Coupler

  • HDPE Electrofusion Equal Tee

  • HDPE Electrofusion Reducing Coupler

  • HDPE Electrofusion Stub End

  • HDPE Tapping Tee

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • Fabricated HDPE 90 Degree Elbow

  • Fabricated HDPE Tee

  • Fabricated HDPE Y Tee

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) butt fusion welding fittings



The following are the specifications of High Density Polyethylene (HDPE) butt fusion welding fitting of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.



Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.
