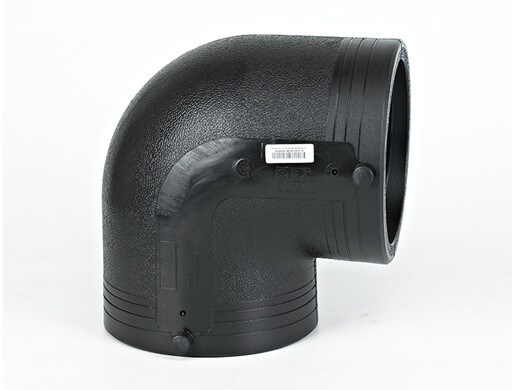

HDPE Electrofusion 90 Degree Elbow with bar code

1. Dia: DN20-1200mm(1/2 inch- 48 inch).
2. Pressure Class: SDR17, SDR11, SDR9.
3. Pressure Class: PN10,PN16, PN20.
4. Packing: Packaged by cartons or bags.
5. Delivery: In Stock, Quick Deliery.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

DEF pipeline Provide high quality HDPE Electrofusion Fittings for Water and Gas, DN20-1200mm, PN10, PN16, PN20, with bar code at competitive price.

HDPE Electrofusion joints including Electrofusion Coupler, Electrofusion Reducing Coupler, Electrofusion Equal Tee, Electrofusion Reducing Tee, Electrofusion elbows, tees, Electrofusion Stub End(Flange Adaptor), Electrofusion End Cap, Electrofusion saddle joints, and Electrofusion service joints.

Details of High Density Polyethylene (HDPE) electro fusion welding fittings with bar code.

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) electrofusion fittings with bar code Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-1200mm(1/2 inch- 48 inch) Delivery time In stock, Quick deliery
Pressure class SDR17 to SDR9, PN10 to PN20 Quality QA & QC system, Ensure traceability of each process
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Coupler, Reducing coupler, Equal tee, Reducing tee, Elbows, Tees, Stub end(flange adaptor), End cap, Saddle joints, Service joints... Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) electro fusion welding fitting with bar code

Electrofusion pipe fitting is plastic (polyethylene) pipe fitting which can be connected by the temperature generated from electric current. It provides fast, durable and safe connections for water and gas pipeline installations.

HDPE electrofusion fittings ends are coiled with brass wire. The HDPE electrofusion machine provides electric current and heats through the brass wire coiled at the end of the fitting to connect. When the temperature rises, it melts the inner end of the HDPE electrofusion fitting and the outer end of the HDPE pipe. In order to achieve a perfect welding effect, the HDPE pipe should remove the oxide layer at the welded end. At the same time, the gap between the outer diameter of the HDPE pipe and the inner diameter of the HDPE electrofusion pipe should be as small as possible.

For easy working, all HDPE electrofusion joints have barcodes, showing welding voltage/welding time/cooling time, etc. Welding data also imprinted on the accessories, and installers can easily set the welding data on the welder to complete the welding job.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

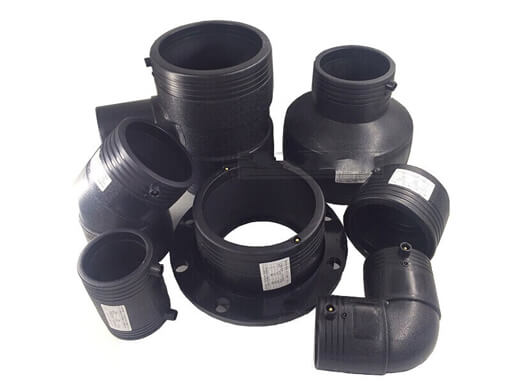

HDPE Electrofusion Fittings with bar code

  • HDPE Electrofusion Stub End(Flange Adaptor) with bar code

  • HDPE Electrofusion Coupler with bar code

  • HDPE Electrofusion Reducing Coupler with bar code

  • HDPE Electrofusion Equal Tee with bar code

  • HDPE Electrofusion Reducing Tee with bar code

  • HDPE Tapping Tee with bar code

  • HDPE Electrofusion 90 Degree Elbow with bar code

  • HDPE Electrofusion 45 Elbow Fittings with bar code

  • HDPE Electrofusion End Cap with bar code

Characteristics And Advantages of High Density Polyethylene (HDPE) electro fusion welding fittings with bar cod：

  • 1. Welding is simpler and easier: HDPE electrofusion machine is small and light, it can perform electrofusion work in some cases where butt fusion cannot, and the welding quality is stable.
  • 2. Reliable connection: When the pipe is inserted into the HDPE electrofusion fitting, it will fully electrofuse on the brass coil in the covered area. The wide welding area ensures the reliability of the connection.
  • 3. The inner diameter of the pipe remains unchanged: Unlike HDPE butt weld fittings, HDPE electrofusion fittings have the same inner diameter (or slightly larger) than the outer diameter of the pipe. Therefore, the inner diameter of the pipe remains the same and smooth after welding, which will allow the maximum water flow.
  • 4. Can be used for various sizes

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

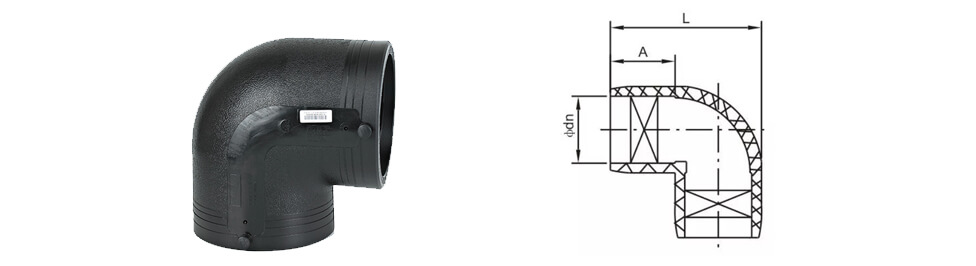

Specification of High Density Polyethylene (HDPE) Electrofusion 90 Degree Elbow with bar code

ɸdn × 90° L A
25×90° 86 42
32×90° 94 43
40×90° 95 48
50×90° 112 52
63×90° 130 54
75×90° 152 64
90×90° 173 64
110×90° 200 73
125×90° 225 79
140×90° 238 79
160×90° 265 80
180×90° 295 85
200×90° 330 100
225×90° 355 104
250×90° 395 114
315×90° 482 128
355×90° 523 126
400×90° 590 139
450×90° 650 155
500×90° 705 160

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion Cross

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Y Tee

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • Fabricated HDPE Tee

  • Fabricated HDPE 90 Degree Elbow

  • Fabricated HDPE Y Tee

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) electro fusion welding fittings



The following are the specifications of High Density Polyethylene (HDPE) electro fusion welding fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.



Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.
