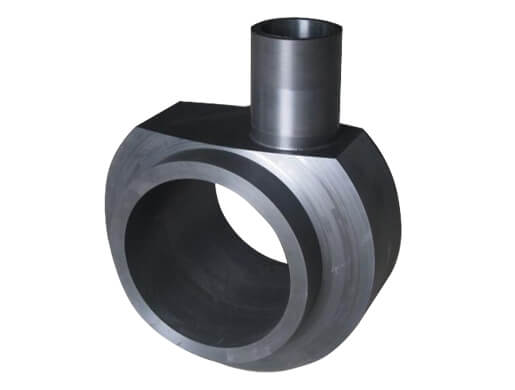

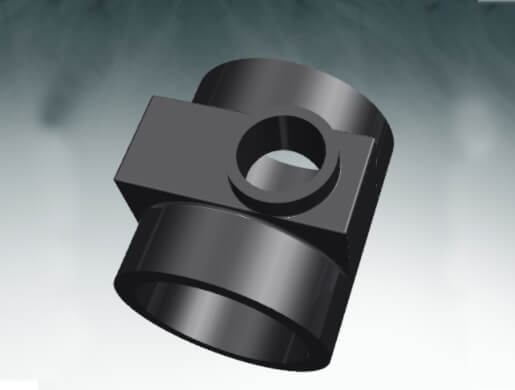

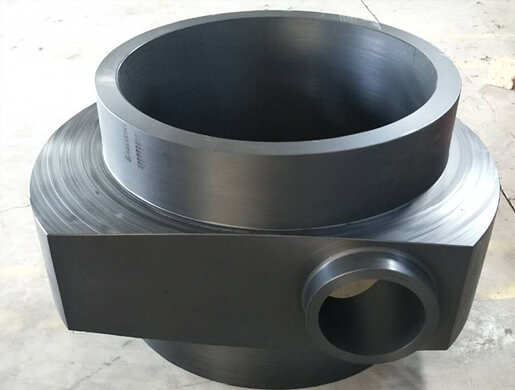

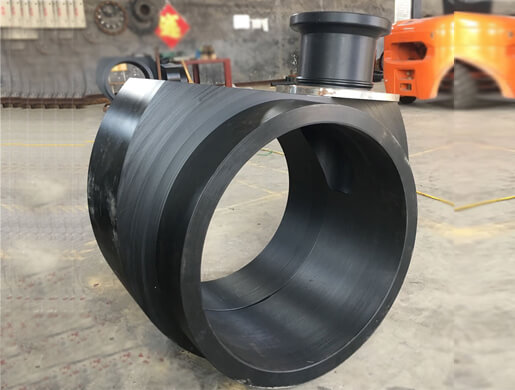

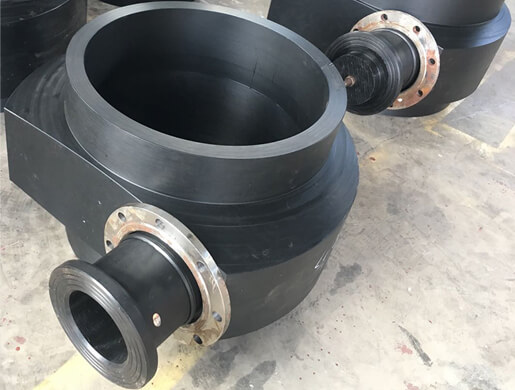

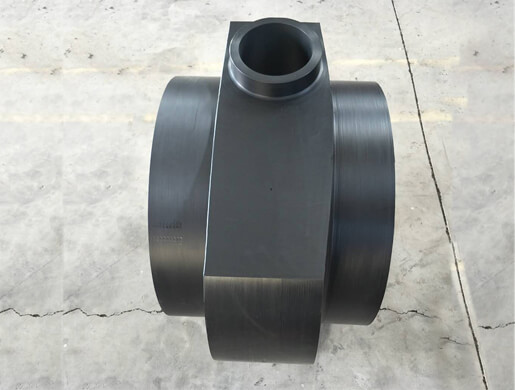

HDPE Mud Tee(SDR9-SDR6)

1. Dia: DN50-1200mm (2 inch-48 inch).
2. Pressure Class: SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN10, PN12.5, PN16, PN20, PN25, PN32.
4. Packing: Packaged by cartons or bags.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

DEF Pipeline can provide HDPE high pressure customiazed pipe fittings of various projects and specifications according to ASTM, ISO 4427, EN12201, EN1555 and other standards, with competitive prices high quality and reliable connection.

Details of High Pressure High Density Polyethylene (HDPE) fittings

Products details information Company/factory strength
Product name High pressure high density polyethylene (HDPE) fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN50-2000mm(2 inch-80 inch) Delivery time In stock, Quick deliery
Pressure class SDR26 to SDR6; PN6 to PN32 Quality QA & QC system, Ensure traceability of each process
Raw material PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Concentric reducer, Eccentric reducer, Equal tee, Mud tee, Reducer tee, Flange adaptor/stub End, Spigot end cap, Flanges and HDPE blind flange, HDPE hollow bar, HDPE solid rod, 90 deg elbow, Sweep bends Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High pressure High Density Polyethylene (HDPE) fittings

High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled tube blank is 2300mm, and the maximum outer diameter of the bar is 1450mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 50-2000mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of gas and water supply.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Pressure HDPE Fittings(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Concentric Reducer(SDR9-SDR6)

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Equal Tee(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • HDPE Reducer Tee(SDR9-SDR6)

  • HDPE Spigot End Cap(SDR9-SDR6)

  • HDPE Sweep Bends(SDR9-SDR6)

  • HDPE Elbow(SDR9-SDR6)

  • HDPE Hollow Bar

  • HDPE Solid Rod

  • HDPE Flanges and HDPE Blind

Characteristics And Advantages of High pressure High Density Polyethylene (HDPE) fittings：

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

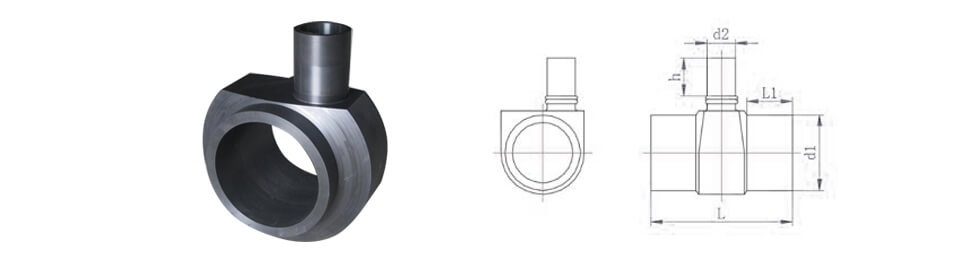

Specification of HDPE Mud Tee((SDR9-SDR6)

HDPE Mud tee(SDR17 - SDR6)
The size of the pipe fitting is formulated by our company according to the actual situation. Other sizes can be customized according to the customer's data. The specifications and non-standard specifications not included in the table, please consult us separately.
d1*d2    mm d1 d2 h L1 L d1*d2    mm d1 d2 h L1 L
mm mm mm mm mm mm mm mm mm mm
315*90 315 90 100 120 390 710*180 710 180 160 200 640
315*110 315 110 120 120 410 710*200 710 200 160 200 660
315*125 315 125 120 120 425 710*225 710 225 160 200 685
315*140 315 140 120 120 440 710*250 710 250 160 200 710
315*160 315 160 120 120 460 800*110 800 110 120 200 570
355*90 355 90 100 120 390 800*125 800 125 120 200 585
355*110 355 110 120 120 410 800*140 800 140 120 200 600
355*125 355 125 120 120 425 800*160 800 160 120 200 620
355*140 355 140 120 120 440 800*180 800 180 160 200 640
355*160 355 160 160 120 460 800*200 800 200 160 200 660
400*90 400 90 100 120 390 800*225 800 225 160 200 685
400*110 400 110 120 120 410 800*250 800 250 160 200 710
400*125 400 125 120 120 425 900*110 900 110 120 300 770
400*140 400 140 120 120 440 900*125 900 125 120 300 785
400*160 400 160 120 120 460 900*140 900 140 120 300 800
450*90 450 90 100 160 470 900*160 900 160 120 300 820
450*110 450 110 120 160 490 900*180 900 180 160 300 840
450*125 450 125 120 160 505 900*200 900 200 160 300 860
450*140 450 140 120 160 520 900*225 900 225 160 300 885
450*160 450 160 120 160 540 900*250 900 250 160 300 910
500*110 500 110 120 160 490 900*280 900 280 200 300 940
500*125 500 125 120 160 505 900*315 900 315 200 300 975
500*140 500 140 120 160 520 1000*110 1000 110 120 300 770
500*160 500 160 120 160 540 1000*125 1000 125 120 300 785
500*180 500 180 160 160 560 1000*140 1000 140 120 300 800
500*200 500 200 160 160 580 1000*160 1000 160 120 300 820
560*110 560 110 120 160 490 1000*180 1000 180 160 300 840
560*125 560 125 120 160 505 1000*200 1000 200 160 300 860
560*140 560 140 120 160 520 1000*225 1000 225 160 300 885
560*160 560 160 120 160 540 1000*250 1000 250 160 300 910
560*180 560 180 160 160 560 1000*280 1000 280 200 300 940
560*200 560 200 160 160 580 1000*315 1000 315 200 300 975
630*110 630 110 120 160 490 1200*110 1200 110 120 300 770
630*125 630 125 120 160 505 1200*125 1200 125 120 300 785
630*140 630 140 120 160 520 1200*140 1200 140 120 300 800
630*160 630 160 120 160 540 1200*160 1200 160 120 300 820
630*180 630 180 160 160 560 1200*180 1200 180 160 300 840
630*200 630 200 160 160 580 1200*200 1200 200 160 300 860
710*110 710 110 120 200 570 1200*225 1200 225 160 300 885
710*125 710 125 120 200 585 1200*250 1200 250 160 300 910
710*140 710 140 120 200 600 1200*280 1200 280 200 300 940
710*160 710 160 120 200 620 1200*315 1200 315 200 300 975

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.
