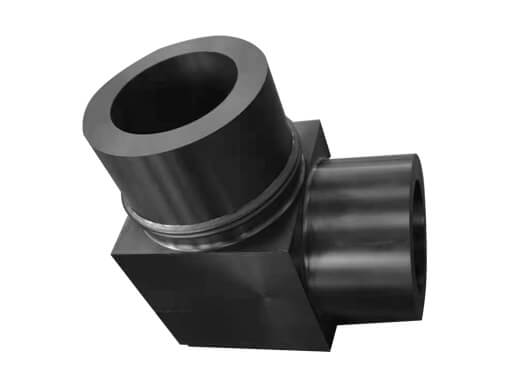

HDPE Elbow(SDR9-SDR6)

1. Dia: DN110-1200mm (4 inch-48 inch).
2. Pressure Class: SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN10, PN12.5, PN16, PN20, PN25, PN32.
4. Packing: Packaged by cartons or bags.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

DEF Pipeline can provide HDPE high pressure customiazed pipe fittings of various projects and specifications according to ASTM, ISO 4427, EN12201, EN1555 and other standards, with competitive prices high quality and reliable connection.

Details of High Pressure High Density Polyethylene (HDPE) fittings

Products details information Company/factory strength
Product name High pressure high density polyethylene (HDPE) fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN50-2000mm(2 inch-80 inch) Delivery time In stock, Quick deliery
Pressure class SDR26 to SDR6; PN6 to PN32 Quality QA & QC system, Ensure traceability of each process
Raw material PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Concentric reducer, Eccentric reducer, Equal tee, Mud tee, Reducer tee, Flange adaptor/stub End, Spigot end cap, Flanges and HDPE blind flange, HDPE hollow bar, HDPE solid rod, 90 deg elbow, Sweep bends Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High pressure High Density Polyethylene (HDPE) fittings

High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled tube blank is 2300mm, and the maximum outer diameter of the bar is 1450mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 50-2000mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of gas and water supply.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Pressure HDPE Fittings(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Concentric Reducer(SDR9-SDR6)

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Equal Tee(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • HDPE Reducer Tee(SDR9-SDR6)

  • HDPE Spigot End Cap(SDR9-SDR6)

  • HDPE Sweep Bends(SDR9-SDR6)

  • HDPE Elbow(SDR9-SDR6)

  • HDPE Hollow Bar

  • HDPE Solid Rod

  • HDPE Flanges and HDPE Blind

Characteristics And Advantages of High pressure High Density Polyethylene (HDPE) fittings：

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Specification of HDPE Elbow(SDR9-SDR6)

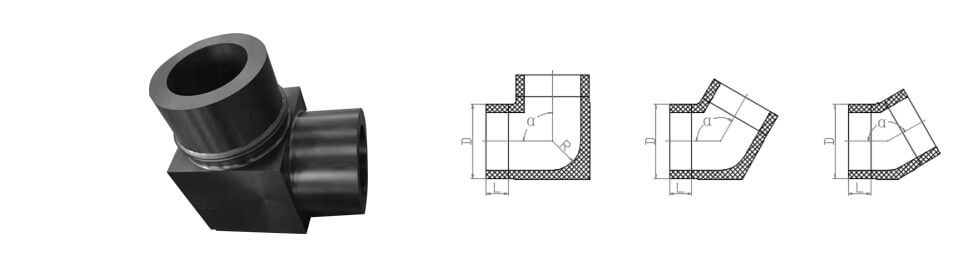

HDPE elbow
Size list of lathe processing elbow (any angle, any pressure)
D 0<α≤45°(L mm) 45<α≤90°(L mm)
110 100 100
125 100 100
140 100 100
160 100 100
180 100 100
200 100 100
225 120 120
250 120 120
280 120 120
315 120 120
355 120 120
400 120 120
450 120 120
500 120 120
560 120 120
630 120 120
710 200 200
800 200 200
900 200 200
1000 200 200
1200 200 200

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.
