HDPE Hollow Bar

1. Dia: DN50-2500mm (2 inch-100 inch).
2. Delivery: 5-10 days depending on the total quantity.
3. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

DEF Pipeline can provide HDPE high pressure customiazed pipe fittings of various projects and specifications according to ASTM, ISO 4427, EN12201, EN1555 and other standards, with competitive prices high quality and reliable connection.

Details of High Pressure High Density Polyethylene (HDPE) fittings

Products details information Company/factory strength
Product name High pressure high density polyethylene (HDPE) fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN50-2000mm(2 inch-80 inch) Delivery time In stock, Quick deliery
Pressure class SDR26 to SDR6; PN6 to PN32 Quality QA & QC system, Ensure traceability of each process
Raw material PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Concentric reducer, Eccentric reducer, Equal tee, Mud tee, Reducer tee, Flange adaptor/stub End, Spigot end cap, Flanges and HDPE blind flange, HDPE hollow bar, HDPE solid rod, 90 deg elbow, Sweep bends Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High pressure High Density Polyethylene (HDPE) fittings

High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled tube blank is 2300mm, and the maximum outer diameter of the bar is 1450mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 50-2000mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of gas and water supply.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

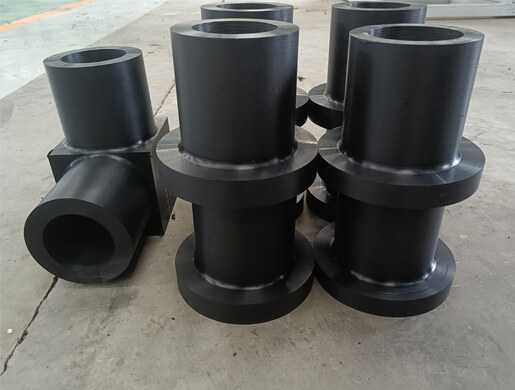

High Pressure HDPE Fittings(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Concentric Reducer(SDR9-SDR6)

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Equal Tee(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • HDPE Reducer Tee(SDR9-SDR6)

  • HDPE Spigot End Cap(SDR9-SDR6)

  • HDPE Sweep Bends(SDR9-SDR6)

  • HDPE Elbow(SDR9-SDR6)

  • HDPE Hollow Bar

  • HDPE Solid Rod

  • HDPE Flanges and HDPE Blind

Characteristics And Advantages of High pressure High Density Polyethylene (HDPE) fittings：

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Specification of HDPE Hollow Bar OD50-2500mm

HDPE Hollow Bar
The size of the pipe fitting is formulated by our company according to the actual situation. Other sizes can be customized according to the customer's data. The specifications and non-standard specifications not included in the table, please consult us separately.
DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm		 DN
mm		 ID
mm
78 44 186 137 281 118 359 255 485 225 592 431 815 627 1125 666 1552 951
92 44 208 44 281 137 359 284 485 255 592 451 922 225 1125 735 1552 1176
92 49 208 49 281 157 378 63 485 284 640 225 922 255 1125 774 1552 1215
92 59 208 59 281 176 378 88 485 320 640 255 922 284 1125 794 1746 882
107 44 208 78 281 196 378 98 485 361 640 284 922 320 1125 862 1746 951
107 49 208 88 281 225 378 118 514 63 640 320 922 361 1213 225 1746 1176
107 59 208 98 301 63 378 137 514 88 640 361 922 402 1213 255 1746 1215
107 78 208 118 301 88 378 157 514 98 640 402 922 431 1213 284 1746 1372
126 44 208 127 301 98 378 176 514 118 640 431 922 451 1213 320 1959 882
126 49 208 137 301 118 378 196 514 137 640 451 922 480 1213 361 1959 951
126 59 228 44 301 137 378 225 514 157 640 480 922 510 1213 402 1959 1176
126 78 228 49 301 157 378 255 514 176 698 225 922 549 1213 431 1959 1215
126 88 228 59 301 176 378 284 514 196 698 255 922 588 1213 451 1959 1372
146 44 228 63 301 196 412 63 514 225 698 284 922 627 1213 480 1959 1568
146 49 228 78 301 225 412 88 514 255 698 320 922 666 1213 510 2231 882
146 59 228 88 301 255 412 98 514 284 698 361 1019 225 1213 549 2231 951
146 78 228 98 320 63 412 118 514 320 698 402 1019 255 1213 588 2231 1176
146 88 228 118 320 88 412 137 514 361 698 431 1019 284 1213 627 2231 1215
146 98 228 127 320 98 412 157 543 63 698 451 1019 320 1213 666 2231 1372
165 44 228 137 320 118 412 176 543 88 698 480 1019 361 1213 735 2231 1568
165 49 228 157 320 137 412 196 543 98 698 510 1019 402 1213 774 2231 1784
165 59 228 176 320 157 412 225 543 118 698 549 1019 431 1213 794
165 78 238 44 320 176 412 255 543 137 718 225 1019 451 1213 862
165 88 238 49 320 196 412 284 543 157 718 255 1019 480 1213 951
165 98 238 59 320 225 412 320 543 176 718 284 1019 510 1348 225
165 118 238 63 320 255 461 63 543 196 718 320 1019 549 1348 255
165 127 238 78 340 63 461 88 543 225 718 361 1019 588 1348 284
165 137 238 88 340 88 461 98 543 255 718 402 1019 627 1348 320
178 44 238 98 340 98 461 118 543 284 718 431 1019 666 1348 361
178 49 238 118 340 118 461 137 543 320 718 451 1019 735 1348 402
178 59 238 127 340 137 461 157 543 361 718 480 1019 774 1348 431
178 78 238 137 340 157 461 176 553 225 718 510 1019 794 1348 451
178 88 238 157 340 176 461 196 553 255 718 549 1125 225 1348 480
178 98 238 176 340 196 461 225 553 284 815 225 1125 255 1348 510
178 118 260 63 340 225 461 255 553 320 815 255 1125 284 1348 549
178 127 260 88 340 255 461 284 553 361 815 284 1125 320 1348 588
178 137 260 98 359 63 461 320 553 402 815 320 1125 361 1348 627
186 44 260 118 359 88 485 63 553 431 815 361 1125 402 1348 666
186 49 260 137 359 98 485 88 553 451 815 402 1125 431 1348 735
186 59 260 157 359 118 485 98 592 225 815 431 1125 451 1348 774
186 78 260 176 359 137 485 118 592 255 815 451 1125 480 1348 794
186 88 260 196 359 157 485 137 592 284 815 480 1125 510 1348 862
186 98 281 63 359 176 485 157 592 320 815 510 1125 549 1348 951
186 118 281 88 359 196 485 176 592 361 815 549 1125 588 1348 1058
186 127 281 98 359 225 485 196 592 402 815 588 1125 627 1552 882

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion Cross

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Y Tee

  • HDPE Electrofusion Stub End(Flange Adaptor) with bar code

  • HDPE Electrofusion Equal Tee with bar code

  • HDPE Tapping Tee with bar code

  • Fabricated HDPE Tee

  • Fabricated HDPE 90 Degree Elbow

  • Fabricated HDPE Y Tee

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Pressure HDPE fittings SDR9, SDR7.4, SDR6...



The following are the specifications of High Pressure HDPE fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
