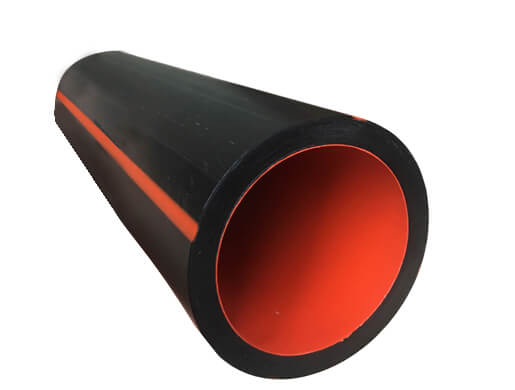

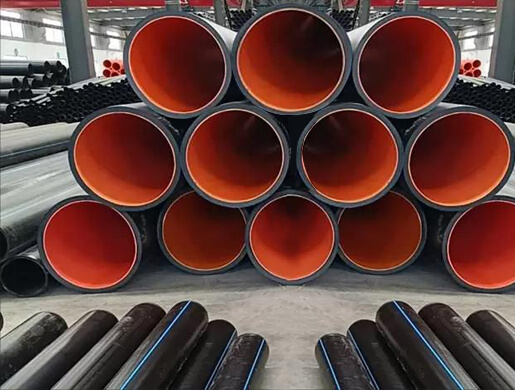

PE100-RC HDPE Pipes for Water & Gas

1. Dia: DN20-1600mm(1/2 inch-64 inch)for water; DN20-630mm(1/2 inch-24 inch) for gas.
2. Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
4. Material: PE100RC.
5. Applications: Water, Gas, Mining, Dredging, Marine, Chemical, Industrial, Irrigation, Fish Fsrming, etc.
6. Standard: ISO 4427, ISO 4437, ASTM 3035, ASTM F714, EN 12201, EN 1555, AS/NZS 4130, DIN 8074, GOST 18599, DIPS, etc.

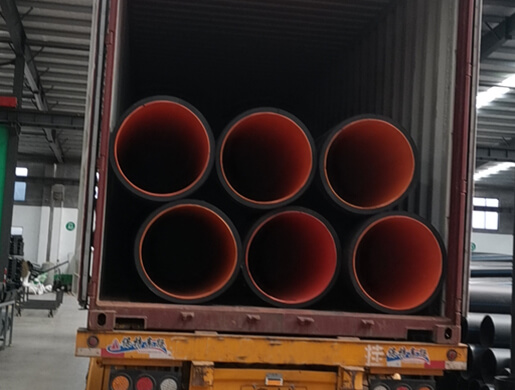

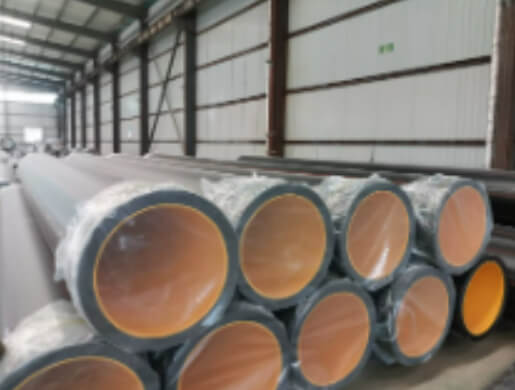

7. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
8. Delivery: 5-10 days depending on the total quantity.
9. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Details of PE100-RC HDPE Pipe for Water & Gas

Products details information Company/factory strength
Product name PE100-RC HDPE pipe for water & gas Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-1600mm(1/2 inch-64 inch) Delivery time 5-10 days, depending on the quantity
Pressure class From PN4 to PN32 for pipe, PN10 to PN32 for fitting Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4427, ISO 4437, ASTM 3035, ASTM F714, EN12201, EN1555, AS/NZS4130, DIN8074, GOST18599, DIPS Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...

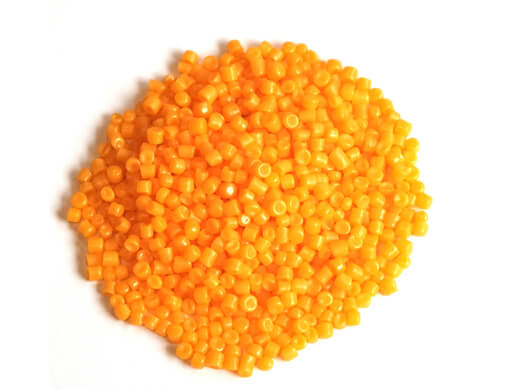

Raw material PE100RC... Management Effective 8S management system

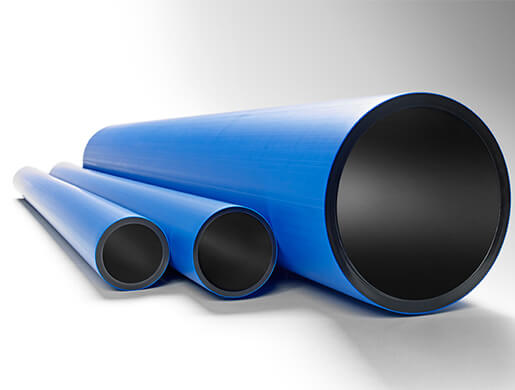

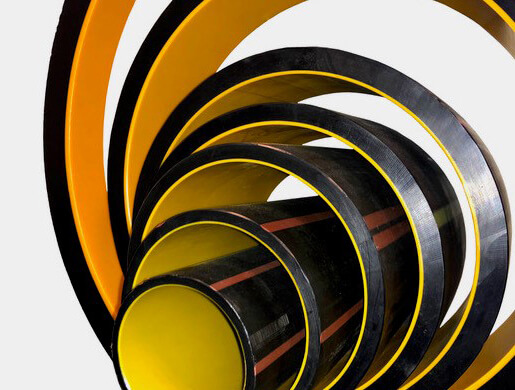

Color Black with blue stripes, Blue for water, Black with orange stripes or yellow for gas & oil(customizable) Warranty 50 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) Quality QA & QC system, Ensure traceability of each process
Application Drinking water, Fresh water, Drainage, Oil and Gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of PE100-RC HDPE Pipe for Water & Gas

1. The polyethylene pipe materials have gone through 4 stages.

The first stage started in the 1950s, and mainly consisted of polyethylene macromolecules without branching; the second was PE80 material; the third was PE100 material; the fourth passed the Molecular structure design. 1. Resin PE125, which is realized by PE cross-linking, is one level higher than PE100, which can make PE pipe withstand higher pressure when the pipe wall is very thin, and the current production cost is high, Still in the development stage. 2. Further improve the slow crack growth resistance and rapid crack growth resistance of PE pipes. Under the action of external scratches and point loads, it can still reach a design service life of 100 years, that is, crack-resistant polyethylene PE100-RC ( RC: Resist Crack, resistant to cracking), representing the product is PE100-RC with a bimodal relative molecular mass distribution of hexene copolymerization.

As crack resistance PE100-RC (PE100 with Resistant to Cracks), according to the definition in GB/T18475-2001 (ISO 12162: 1995) [The overall use (design) factor for the classification and designation of thermoplastic pressure pipes and fittings], its According to the pressure classification level of the material, it is still a PE100 pressure pipe material. At the same time, due to its excellent resistance to slow crack growth (stress cracking), it is defined as a crack-resistant PE100- RC, PE100 pipe compound/APE100 compound with a significantly enhanced resistance to slow crack growth (Stress Cracking Resistance).

PE100-RC pipe has excellent resistance to slow crack growth, so it can cope with harsh environments, and can still achieve a design service life of 100 years under the effect of scratches on the outer wall and point loads. PE100-RC inherits the technical advantages of PE pipes and can be used for pipeline renewal, trenchless installation and rapid pipeline laying technology.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

HDPE fittings

  • HDPE Butt Fusion welding Fittings

  • HDPE Socket Fusion Fittings

  • HDPE Fabricated Segments Fittings

  • HDPE Electrofusion Fittings with bar code

  • Polypropylene(PP) Compression Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

Advantages of PE100-RC HDPE water and gas pipe:

  • 1. Optimized resistance to local deformation.
  • 2. TRaised resistance to mechanical damages.
  • 3. Environmental stress crack resistance during continuous exploitation.
  • 4. Increased resistance to tension.
  • 5. Chemical and biological inertness.
  • 6. Material neutral to the environment - polyethylene is 100% recyclable and reusable.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specifications of PE100-RC HDPE Pipe for Water & Gas for Water & Gas

ISO 4427 Pipe Series S 16 S 12,5 S 10 S 8 S 6,3 S 5 S 4 S 3.2
ASTM F714 SDR SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
Nominal Pressure PE 100 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25
Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Pipe for Water and Gas

  • HDPE Pipe for Drinking Water

  • HDPE Pipe for Natural Gas & Oil

  • HDPE Pipe for fire fighting applications

  • HDPE Pipe for Drainage/ Sewer

  • PE100-RC HDPE Pipes for Water & Gas Gas

  • HDPE Pipe for Cable Protection

  • HDPE Pipe for Mining

  • HDPE Pipe for Dredging

  • HDPE Pipe for Irrigation

  • HDPE Silicon Core Pipe

  • HDPE Trenchless Pipe For HDD

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

PE100-RC HDPE Pipe for Water & Gas



The following are the specifications of PE100-RC HDPE Pipe for Water & Gas of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
