HDPE Pipe for Drainage/ Sewer

1. Dia: DN20-2000mm (1/2 inch-80 inch).
2. Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.

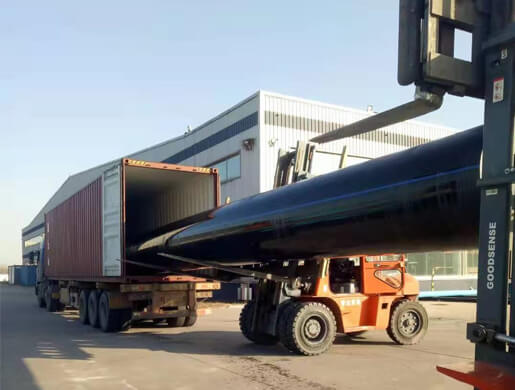

4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Def Pipeline offers durable solutions specially designed to ensure the health of communities and protect the environment. Our sewage systems are built to last and have long-term performance.

Details of High Density Polyethylene (HDPE) Drainage/ Sewer Pipe and Fitting

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) drainage/ sewer pipe and fitting Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure class SDR6 to SDR41; PN4 to PN32 Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO 8770, ISO 8772, ISO 4427, ASTM D3035, ASTM F714, EN 12201, GOST 18599, DIPS Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system
Color Black with blue stripes, Black or others colors Warranty 50 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) Quality QA & QC system, Ensure traceability of each process
Application Water treatment, Sewage disposal... No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) Drainage/ Sewer Pipe and Fitting

HDPE drainage pipe system has the characteristics of flexibility, excellent chemical resistance, high temperature resistance, high toughness, abrasion resistance, no leakage and low noise, making it the ideal material for water supply and drainage in residential and industrial buildings, laboratories, hospitals and hotels.

Def pipeline provides a range of solutions that meet the complex and varied pipework requirements in industrial water and wastewater treatment. We offer versatile products that transport chemicals safely and ensure the long service life of the pipe.

HDPE fittings

  • HDPE Butt Fusion welding Fittings

  • HDPE Socket Fusion Fittings

  • HDPE Fabricated Segments Fittings

  • HDPE Electrofusion Fittings with bar code

  • Polypropylene(PP) Compression Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

Advantages of High Density Polyethylene (HDPE) Drainage/ Sewer Pipe and Fitting：

  • 1. Corrosion resistance: HDPE belongs to inert materials, can resistance to various chemical media.
  • 2. No leakage: HDPE pipes are jointed by butt fusion, the interface strength higher than tube itself.
  • 3. High toughness: The fracture extension rate of HDPE pipe is over 500%. The adaptive ability is good as to the uneven settlement of the base , and it has good aseismic performance.
  • 4. Good resistance to quickly crack propagation (RCP) ability.
  • 5. Good flexible and resistance to scratches ability.
  • 6. Good wear resistance: low wall friction coefficient.
  • 7. Trenchless installation: HIt can use a variety of trenchless ways to install, easy for construction and installation.
  • 8. Low system cost: less maintenance cost, can dramatically reduce the costs for the project.
  • 9. Long service life:Underground HDPE pipe can be used more than fifty years.
  • 10. Recyclable: Recyclable and environment-friendly since it can be reused.
  • 11. Smooth internal: small flow resistance, excellent conveying ability, surface to reduce the solid buildup and scaling in the pipe.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specifications of High Density Polyethylene (HDPE) Drainage/ Sewer Pipe

ISO 4427 Pipe Series S 16 S 12,5 S 10 S 8 S 6,3 S 5 S 4 S 3.2
ASTM F714 SDR SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
Nominal Pressure PE 100 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25
Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
16 2 2.3
20 0.79 1.5 2 2.3 3
25 0.98 0.76 0.8 1.2 1.5 2 2.3 3 3.5
32 1.26 0.97 1 1.5 2 2.4 3 3.6 4.4
40 1.57 1.21 1.2 2 2.4 3 3.7 4.5 5.5
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Pipe for Water and Gas

  • HDPE Pipe for Drinking Water

  • HDPE Pipe for Natural Gas & Oil

  • HDPE Pipe for fire fighting applications

  • HDPE Pipe for Drainage/ Sewer

  • PE100-RC HDPE Pipes for Water & Gas Gas

  • HDPE Pipe for Cable Protection

  • HDPE Pipe for Mining

  • HDPE Pipe for Dredging

  • HDPE Pipe for Irrigation

  • HDPE Silicon Core Pipe

  • HDPE Trenchless Pipe For HDD

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) Drainage/ Sewer Pipes and Fittings



The following are the specifications of High Density Polyethylene (HDPE) Drainage/ Sewer Pipes and Fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
