HDPE Pipe for Mining

1. Dia: DN20-2000mm (1/2 inch-80 inch).
2. Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Def polyethylene (HDPE) pipe’s unique mechanical properties, safety and reliability have made HDPE (High-density polyethylene) piping systems to be the he best choice for mineral and waste transfer in the mining industry.

Details of High Density Polyethylene Mining Pipe and Fitting

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) mining pipe Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure class From PN4 to PN32 for pipe, PN10 to PN32 for fitting Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO4427, ISO4437, ASTM D3035, ASTM F714, EN12201, DIPS Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system
Color Black with blue stripes, Black or others colors Warranty 50 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) Quality QA & QC system, Ensure traceability of each process
Application Water supply in mining area, Sewage disposal, Tailings slurry, Chemical transport... No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene Mining Pipe

Security, reliability and abrasion resistance are the three most important factors for the mining pipes. The pipe must be Chemical Resistance, rustproof, break-resistant and corrosion-free. HDPE piping system ensures safe usage while having high economic benefits.

HDPE pipes are more and more popular in mining pipes. They are not only easy to install, but also resistant to acid and alkali corrosion and abrasion The service life is much longer than other pipelines. PE pipe for mining works is used for mortar pipe ,drainage pipe, gas drainage pipe, positive and negative pressure air pipes etc.

HDPE fittings

  • HDPE Butt Fusion welding Fittings

  • HDPE Socket Fusion Fittings

  • HDPE Fabricated Segments Fittings

  • HDPE Electrofusion Fittings with bar code

  • Polypropylene(PP) Compression Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

Advantages of the High Density Polyethylene Mining Pipe and Fitting：

  • 1. No leakage with a reliable connection: The polyethylene pipe system is connected butt fusion or electrofusion, and the strength of the joint is higher than that of the pipe body. The HDPE pipe and other pipes are connected by flange, which is convenient and quick.
  • 2. Chemical Resistance: Polyethylene is an inert material. HDPE pipes are resistant to erosion by various chemical media except for a few strong oxidants. Chemical substances present in the soil will not cause any degradation to the pipe, HDPE pipe is the first choive in harsh chemical environments.
  • 3. Good wear resistance: The wear resistance of HDPE pipe is 4 times of steel pipe as per the comparison test results. In the field of mud transportation, HDPE pipes have better wear resistance than steel pipe, which means that HDPE pipes have longer service life and lower cost.
  • 4. Pressure Surge Resistant: HDPE pipe can withstand high external loads and high internal pressure surges. Its flexible nature expands with pressure surges increases the life of the pipeline and reduces maintenance costs.
  • 5. Low cost: HDPE pipe is extremely cost-effective due to its low maintenance cost and leak-free joints. It can withstand high external and internal pressure loads, thereby reducing any associated maintenance costs and extending the overall life of the pipeline.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specifications of High Density Polyethylene Mining Pipe

ISO 4427 Pipe Series S 16 S 12,5 S 10 S 8 S 6,3 S 5 S 4 S 3.2
ASTM F714 SDR SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
Nominal Pressure PE 100 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25

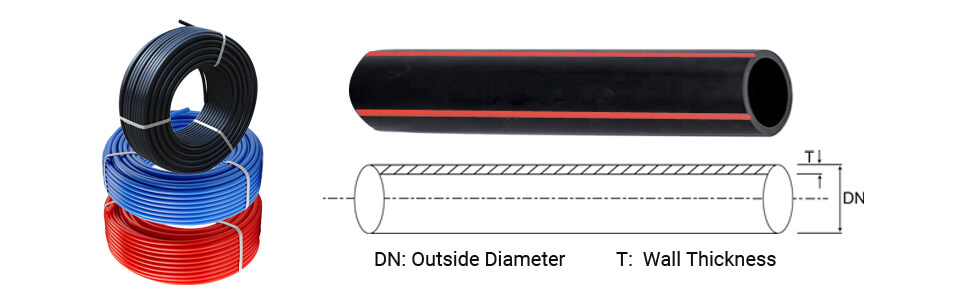

Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
16 2 2.3
20 0.79 1.5 2 2.3 3
25 0.98 0.76 0.8 1.2 1.5 2 2.3 3 3.5
32 1.26 0.97 1 1.5 2 2.4 3 3.6 4.4
40 1.57 1.21 1.2 2 2.4 3 3.7 4.5 5.5
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Pipe for Water and Gas

  • HDPE Pipe for Drinking Water

  • HDPE Pipe for Natural Gas & Oil

  • HDPE Pipe for fire fighting applications

  • HDPE Pipe for Drainage/ Sewer

  • PE100-RC HDPE Pipes for Water & Gas Gas

  • HDPE Pipe for Cable Protection

  • HDPE Pipe for Mining

  • HDPE Pipe for Dredging

  • HDPE Pipe for Irrigation

  • HDPE Silicon Core Pipe

  • HDPE Trenchless Pipe For HDD

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) Mining Pipes and Fittings



The following are the specifications of High Density Polyethylene (HDPE) Mining Pipes and Fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
